Proper conductor sizing is paramount for the safe and efficient operation of any high-amperage electrical appliance. When installing a 220V air conditioner, selecting the best wire to use for 220V for this critical circuit is non-negotiable.
Understanding the nuances of wire gauge and material will directly impact the longevity and reliability of your cooling system. Explore our curated selection to find the best wire to use for 220V for your air conditioner and safeguard your investment.

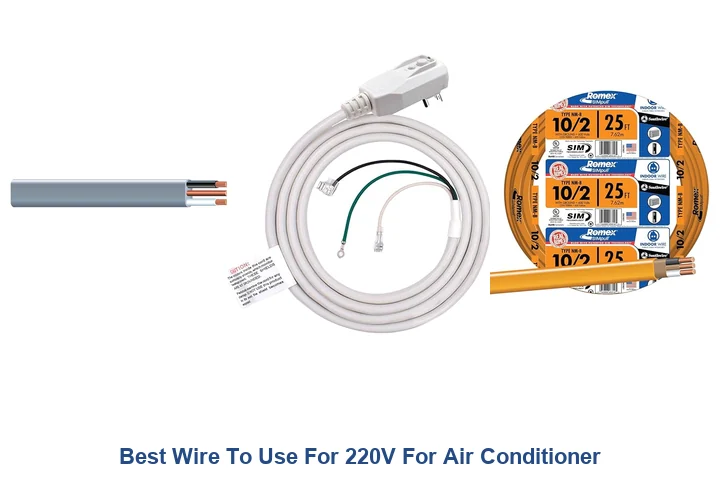

Power Up Your AC: Top Picks Compared
1. Southwire 12/2 UF B Wire with Ground, 50 ft, Gray
Power your outdoor projects with confidence using the Southwire 12/2 UF B Wire. This robust, direct burial rated cable is engineered for demanding exterior applications, offering a reliable and durable solution for bringing electricity where you need it most, safely and efficiently.
Designed for straightforward underground installation without conduit, this 50 ft gray wire features two solid copper conductors and a protective PVC jacket. Its high voltage and heat capacity, rated for up to 600 volts and 90°C, ensure it meets stringent NEC requirements, making it ideal for lamp posts, water pumps, and outbuildings.
Pros
- Direct Burial Ready: Eliminates the need for conduit, simplifying installation for outdoor loads and outbuildings like garages and barns.
- Durable Copper Construction: Solid copper conductors and a tough PVC jacket offer long-lasting performance and resistance to corrosion, ensuring reliable power over time.
- High Capacity & Safety Rated: Handles up to 600 volts and 90°C temperatures, meeting NEC requirements and providing peace of mind with UL Listed and CSA Certified quality.
Cons
- Limited Length: At 50 feet, users may need to purchase multiple lengths for larger projects, potentially increasing overall cost.
The Southwire 12/2 UF B Wire is an excellent choice for homeowners and agricultural users requiring a dependable wiring solution for outdoor power needs. Its direct burial capability and robust construction make it a cost-effective and secure option for bringing electricity to remote locations.
2. ELEGRP L22615 240V 15A 3600W 14AWG LCDI Power Cord Plug
Safeguard your air conditioner with the ELEGRP L22615 LCDI Power Cord Plug, engineered for superior protection and reliable performance. This cord offers advanced leakage current detection, ensuring safety against electrical hazards and protecting your valuable appliance.
This 15A, 3600W power cord features a robust 14AWG x 3C construction and a 2-meter length, providing ample reach for various installation needs.
Its integrated LCDI technology offers advanced protection against arcing and fire hazards caused by cord damage or leakage, ensuring peace of mind.
Pros
- Advanced Safety Protection: Built-in LCDI (Leakage Current Detection Interrupter) immediately cuts power in under 0.5 seconds if leakage current (less than 5mA) is detected, preventing fire hazards.
- Designed for Air Conditioners: Ideal for portable, window, and PTAC units, this cord directly addresses the specific power needs and safety requirements of air conditioning appliances.
- Durable and Certified Construction: Features a 14AWG x 3C shielded cable and is UL certified (meeting UL1699 requirements), guaranteeing adherence to high safety and quality standards.
- Convenient Installation: Comes with pre-attached terminals for hot (black), neutral (white), and ground (green) wires, simplifying the connection process for a secure setup.
Cons
- The 2.2-meter cord length may be insufficient for installations requiring longer reaches.
For those seeking enhanced safety and reliability for their indoor air conditioning units, the ELEGRP L22615 LCDI Power Cord Plug is an excellent choice. Its specialized protection technology and robust build make it a worthwhile investment for safeguarding both your appliance and your home.
3. Southwire Romex™ Brand Simpull Solid Indoor 10/2 W/G NMB Cable
Simplify your next residential wiring project with the Southwire Romex™ Brand Simpull Solid Indoor 10/2 W/G NMB Cable. Engineered for ease of use, its patented SIMpull coating ensures smoother pulling, quicker stripping, and a more streamlined installation process, making it the top choice for DIYers and professionals alike seeking efficiency and reliability.
This 14-gauge copper building wire is designed for 600-volt applications, making it suitable for various branch circuits like switches and outlets in dry, above-ground locations. It can even be safely run within air voids of masonry block or tile walls, provided these areas remain dry, offering versatile installation options where needed.
Pros
- Effortless Installation: The proprietary SIMpull Cable Jacket significantly reduces friction, allowing for easier pulling through conduit and walls, saving valuable installation time and effort.
- Simplified Stripping: The jacket is designed for clean and easy stripping, directly contributing to faster termination and a more professional finish on electrical connections.
- Versatile Application: Suitable for a wide range of residential wiring needs, including branch circuits for outlets and switches, and can be used in dry masonry wall voids, enhancing flexibility.
- Robust Voltage Handling: With a 600-volt rating, this NMB-B cable provides ample capacity for most standard residential electrical demands.
Cons
- Location Restrictions: This NM-B cable is strictly designated for use in dry locations only and must be installed above ground, limiting its application in damp or wet environments.
For efficient and reliable residential electrical installations, the Southwire Romex™ Brand Simpull Solid Indoor 10/2 W/G NMB Cable stands out. Its user-centric design features, particularly the SIMpull jacket, expedite the installation process significantly, making it an excellent choice for projects requiring speed without compromising on quality.
4. CONEPY 12 Gauge Wire, 12 AWG 2 Conductor Electrical Wire,
Experience superior electrical conductivity and unwavering durability with CONEPY 12 AWG 2 Conductor Electrical Wire. Designed for demanding applications, this wire ensures a stable and interference-free connection, making it an ideal choice for projects requiring reliable power delivery and extended lifespan.
Featuring 65 strands of 24mm oxygen-free tinned copper per circuit, this 12-gauge wire boasts up to 5% more current capacity than aluminum.
This low-voltage wire is also conveniently flexible and includes heat shrink tubes and cable ties for a cleaner, safer installation.
Pros
- Enhanced conductivity from oxygen-free tinned copper ensures efficient and stable power transfer.
- Superior durability provided by a premium PVC jacket protects against environmental damage and extends service life.
- User-friendly design for easy handling, stripping, soldering, and cutting, complemented by included accessories for professional finishing.
- High reliability with an IP68 waterproof rating, VW-1 flame retardant rating, and a wide operating temperature range suitable for diverse environments.
Cons
- While rated for up to 600V, its primary application focus is on lower voltage systems (5V-24V), meaning it may be over-specified or require additional considerations for higher voltage AC applications.
For projects demanding robust, reliable, and weather-resistant low-voltage wiring, the CONEPY 12 AWG 2 Conductor Electrical Wire stands out. Its construction and included accessories facilitate professional installations for a wide array of applications, ensuring consistent performance in challenging conditions.
5. ELEGRP 0651510LY L15515 L22515 18AWG LCDI Power Cord Plug for
Ensure unparalleled safety for your air conditioning units with the ELEGRP LCDI Power Cord Plug. This vital component offers advanced protection against electrical hazards, providing peace of mind for indoor A/C installations.
Featuring Leakage Current Detection Interrupter (LCDI) technology, this cord actively monitors for deviations in current flow. Built with shielded conductors and meeting UL1699 standards, it swiftly interrupts power to prevent potential fires and electrical dangers, ensuring safe operation for various A/C types.
Pros
- Advanced LCDI technology detects leakage currents as low as 5mA and trips within 0.5s, significantly enhancing safety for air conditioners.
- Specifically designed and UL certified for use with portable, window, and PTAC air conditioners, providing a direct and secure connection.
- Includes a 2.2-meter 18AWG x 3C power cord with clearly marked terminals for hot, neutral, and ground wires, simplifying installation.
- Rated for 120 Volts, 10 Amps, and 1200 Watts, making it suitable for a wide range of common A/C power requirements.
Cons
- The cord’s 18AWG gauge and 10 Amp rating may not be suitable for higher-wattage air conditioning units that require thicker gauge wiring for safe operation.
For anyone prioritizing safety and reliable performance with their indoor air conditioning systems, the ELEGRP LCDI Power Cord Plug is an excellent choice. Its integrated protection features offer a crucial layer of defense against common electrical faults.
6. BAOMAIN 7.2FT LCDI A/C Power Cord Replacement, 20 Amp 240V
Ensure your air conditioner operates safely and efficiently with the BAOMAIN 2FT LCDI A/C Power Cord Replacement.
This 20 Amp, 240V power cord features integrated LCDI technology and color-coded terminals for straightforward installation. With a
Pros
- Advanced Leakage Protection: The built-in LCDI (Leakage Current Detection Interrupter) technology actively monitors for leakage currents as low as 5mA and swiftly cuts power within 0.5 seconds, significantly reducing fire hazards and protecting both users and the appliance.
- Wide Compatibility: Perfectly suited for a variety of indoor air conditioning systems, including portable ACs, window units, and PTAC systems, this cord offers versatile use for essential climate control.
- Certified Safety and Quality: Meeting stringent UL1699 standards, this power cord guarantees compliance and dependable performance, offering peace of mind with its certified safety features.
- Effortless Installation: The inclusion of clearly marked, color-coded terminals (black for Hot, white for Neutral, and green for Ground) along with a standard NEMA 6-20P plug makes setup quick and uncomplicated for qualified users.
Cons
- Indoor Use Only: This power cord is specifically designed and rated for indoor environments, meaning it cannot be used in outdoor applications.
For those seeking a safe and reliable power solution for their indoor air conditioner, the BAOMAIN LCDI A/C Power Cord Replacement stands out. Its advanced safety features and robust construction make it an excellent choice for ensuring your cooling appliances are protected and function optimally.
7. NM-B 6/3 Wire with Ground,15ft 6 AWG Copper Wire 6
Power your high-demand appliances with confidence using the NM-B 6/3 Wire with Ground. This robust copper cable is engineered for reliability, offering a secure and efficient solution for residential indoor wiring projects that require substantial current capacity.
This 6 AWG NM-B cable features three conductors plus a ground wire, all rated for 600 volts and a temperature range of -10℃ to +90℃. Its RoHS environmental grade and UL listing assure quality and safety for branch circuits, subpanels, electric ranges, dryers, EV chargers, and HVAC systems in dry indoor environments.
Pros
- UL Listed Quality: Ensures adherence to safety and performance standards for reliable residential indoor wiring.
- Versatile Application: Ideal for demanding circuits like 240V loads, subpanels, ovens, dryers, EV chargers, and HVAC systems.
- Durable Construction: Built with 99.99% oxygen-free copper for superior conductivity and a double-jacketed PVC insulation for corrosion and oxidation resistance.
- Ease of Installation: The manageable PVC jacket facilitates easier pulling, stripping, and overall installation compared to less flexible alternatives.
Cons
- Not for Outdoor Use: Specifically designed for dry indoor locations; not suitable for wet or damp environments or outdoor applications.
For critical indoor electrical runs demanding robust delivery, the NM-B 6/3 Wire with Ground stands out. Its heavy-duty construction and high conductivity make it an excellent choice for powering significant residential loads where safety and performance are paramount.
8. 20FT NEMA 6-15P/6-15R Power Extension Cord for 220/240V Air-Condition,Power Cable
Power up your high-demand appliances with confidence using this robust 20-foot NEMA 6-15P to 6-15R extension cord. Engineered for 220/240V systems, it’s the ideal solution for reliably connecting your air conditioner, power tools, and specialized equipment.
This heavy-duty extension cord features a durable 3×14 AWG SJTW black cable, rated for 15 Amps and 240 Volts at temperatures from -30℃ to 105℃. Its construction ensures excellent abrasion, oil, and moisture resistance, making it suitable for demanding environments and ensuring reliable power delivery.
Pros
- **UL Listed and Durable Construction:** Built with 100% copper wiring and FT-1 fire-resistant PVC, offering superior safety and longevity.
- **Wide Compatibility:** Features NEMA 6-15P male plug and NEMA 6-15R female connector, perfectly suited for most digital ballasts, LED grow lights, saws, and other 240V power tools.
- **Versatile Application:** Excellently handles demanding loads like 220/240V air conditioners, table saws, and even BITMAIN MINER for Antminers.
- **All-Weather Flexibility:** The high-quality PVC material remains flexible in extreme temperatures from -30℃ to 105℃.
Cons
- While versatile, the NEMA 6-15 configuration is specific to 240V circuits; ensure your equipment and power source match this standard.
For those needing a reliable conduit for their 220/240V devices, this extension cord delivers exceptional performance and durability. Its sturdy build and wide application range make it an essential accessory for powering everything from heavy-duty tools to climate control systems.
9. 12 AWG THHN Wire 3-Conductor (Black/White/Green) – Stranded Copper, THHN/THWN-2
Elevate your electrical projects with the 12 AWG THHN Wire, featuring a 3-conductor design for efficient and reliable power distribution. Engineered for durability and ease of use, this stranded copper wire is the smart choice for demanding applications where performance and safety are paramount.
This 12 AWG wire boasts high conductivity due to its stranded bare copper conductors, facilitating smooth pulling through conduit and simplifying routing with its pre-twisted design. The durable dual-layer PVC insulation with a nylon jacket protects against abrasions, chemicals, and environmental factors, ensuring long-term reliability in various conditions.
Pros
- High conductivity and flexibility from stranded bare copper, paired with a pre-twisted design for easier installation.
- Superior protection against abrasion, oil, gasoline, sunlight, and chemicals provided by the dual-layer PVC insulation and nylon jacket.
- Rated THHN/THWN-2 for 600V and 90°C, making it suitable for both dry and wet locations with excellent flame retardant properties.
- Durable and oxidation-resistant construction ensures extended service life and mechanical protection, suitable for indoor and outdoor environments.
- Clear color coding (Black, White, Green) significantly reduces wiring errors and ensures proper grounding for enhanced safety.
Cons
- While versatile, this wire is specifically designed for electrical wiring applications and isn’t intended for direct use in certain specialized power transmission scenarios where different cable types might be mandated.
Indispensable for a wide range of electrical upgrades, this 12 AWG THHN wire is an excellent solution for breaker panels, branch circuits, conduit runs, and various other demanding applications. Its robust construction and safety ratings make it a dependable choice for residential, commercial, and industrial projects requiring reliable 220V power.
10. 25ft 10/3 10 Gauge SOOW Wire 10 AWG 600V SOOW
Discover the ultimate solution for your high-power electrical needs with the 25ft 10/3 10 Gauge SOOW Wire. Engineered for resilience and superior conductivity, this heavy-duty cable is your reliable partner for demanding applications, ensuring safe and efficient power delivery where it matters most.
This 600V SOOW electric wire, constructed with Oxygen Free Copper (OFC), boasts exceptional water and oil resistance, making it ideal for industrial, outdoor, and commercial environments. Its robust 10 AWG 3-conductor design meets stringent UL standards, guaranteeing safety and longevity for everything from generators and RVs to electric car chargers and heavy machinery.
Pros
- Exceptional Durability & Resistance: The SOOW rating (Service, Oil, and Water Resistant) combined with its thick outer rubber insulation and inner rubber jacket ensures it thrives in harsh industrial and outdoor conditions, enduring moisture, oil, and abrasions.
- Superior Conductivity & Safety: Featuring Oxygen Free Copper (OFC), this 10 AWG cable offers enhanced electrical conductivity, reducing overheating risks and ensuring a consistent, safe power supply up to 600V, perfect for high-draw appliances.
- High Capacity for Power Demands: The heavy-duty 10-gauge construction provides a robust power source capable of handling significant voltage loads, making it an excellent choice for welders, generators, RVs, electric car chargers, and industrial machinery.
Cons
- While highly versatile, this wire is a bulk cable and requires connectors or professional installation for use as a ready-made extension cord.
For applications demanding unwavering power delivery and built to last, this 25ft 10/3 10 Gauge SOOW Wire is an indispensable component. Its industrial-grade construction and high conductivity make it the smart choice for powering critical equipment and ensuring operational reliability in challenging environments.
How to Select the Best Wire for 220V AC
Wire gauge awg for air conditioners
The American Wire Gauge (AWG) designation is fundamentally important for ensuring the safe and efficient operation of your 220V air conditioner.
This rating directly dictates a wire’s diameter, with smaller AWG numbers indicating thicker wires. Thicker wires possess lower electrical resistance, allowing them to safely handle higher amperages without overheating or causing voltage drops that can impair your AC unit’s performance.
An undersized wire can lead to premature component failure and, in severe cases, pose a fire hazard. Therefore, selecting the correct gauge is paramount for both longevity and safety.
For most 220V applications, 12 AWG copper wire is recommended for air conditioners up to 15,000 BTU. Larger units, typically 18,000 BTU and above, may necessitate a thicker 10 AWG wire.
You can identify the wire’s gauge by looking for printed markings directly on the insulation, which will clearly state the AWG number.
Wire material and conductor type
The very composition of your electrical wiring is paramount for safe and efficient operation of high-demand appliances.
Understanding the differences between various conductors and their construction directly influences current carrying capacity, heat dissipation, and long-term reliability, especially for systems powering significant loads like climate control units.
For 220V circuits, pure copper stands out due to its superior conductivity and lower resistance compared to aluminum, which can degrade over time and pose a fire hazard if not properly managed with specific connectors. Aluminum, though lighter and less expensive, requires careful installation and expansion devices to account for thermal expansion. Regarding physical form, solid wire is generally preferred for stationary applications where it won’t be flexed, offering a robust connection in termination points, while stranded wire provides flexibility crucial for routing through conduit or areas subject to vibration.
Regarding physical form, solid wire is generally preferred for stationary applications where it won’t be flexed, offering a robust connection in termination points, while stranded wire provides flexibility crucial for routing through conduit or areas subject to vibration. Additionally, the purity of the conductor material significantly impacts its ability to carry electricity with minimal loss; higher purity means fewer impurities that impede electron flow, leading to better performance and reduced heat generation.
Insulation and jacket ratings
The integrity and type of a wire’s protective covering are paramount for safe and reliable electrical distribution, especially for high-demand appliances.
This outer layer, known as insulation and the jacket, shields the conductive copper from physical damage, environmental factors, and prevents hazardous electrical shorts. For circuits powering heavy loads like air conditioning units operating on 220V, a robust and properly rated covering is non-negotiable to prevent overheating, melting, and potential fire hazards.
Understanding different insulation materials is key; for instance, THHN (Thermoplastic High Heat-resistant Nylon-coated) is a common choice for conduit runs due to its excellent heat and abrasion resistance, while NMB (Non-metallic Sheathed Cable) is typically used for interior wiring applications and offers good mechanical protection. If the wire will be exposed to sunlight or damp conditions, you’ll need a jacket specifically rated for UV and moisture resistance.
This ensures the cable doesn’t degrade prematurely, maintaining its protective qualities and preventing electrical failures in demanding environments from attic spaces to outdoor condenser units.
Voltage and temperature ratings
A wire’s ability to safely and reliably conduct electricity hinges on its voltage and temperature ratings.
For a 220V appliance like an air conditioner, it is paramount that the chosen wire is explicitly rated for this voltage to prevent electrical hazards such as arcing, overheating, and potential fire. Exceeding a wire’s voltage limit can lead to insulation breakdown and system failure. Furthermore, understanding the maximum operating temperature is critical.
Furthermore, understanding the maximum operating temperature is critical. Wires are often rated for specific temperature limits (e.g.
, 75°C or 90°C). Operating a wire at or above its maximum temperature rating significantly degrades its insulation over time, reducing its lifespan and increasing the risk of failure.
The ambient temperature surrounding the wire must also be factored in; a wire installed in a hot attic or near other heat-generating components will have its effective current-carrying capacity reduced compared to the same wire in a cooler environment. Failing to account for these environmental factors can lead to premature wire failure or inadequate performance.
Always consult the wire’s specifications to confirm it meets or exceeds the 220V requirement and has an appropriate maximum operating temperature for the intended installation environment. This ensures both safety and long-term operational integrity for your air conditioning system.
Brand reliability and certifications
Investing in electrical wiring demands a keen eye for brand reputation and validated safety standards.
The integrity of a wire’s construction and the manufacturer’s track record are paramount to ensuring the safe and efficient operation of high-demand appliances like air conditioning units. Inferior materials or manufacturing shortcuts can lead to overheating, short circuits, and potential fire hazards, making it crucial to rely on established names known for their commitment to quality and safety in electrical components.
When evaluating options, look for products from reputable wire manufacturers with a history of producing reliable materials for electrical projects. Crucially, verify that the wiring carries recognized safety certifications such as UL (Underwriters Laboratories) or CSA (Canadian Standards Association) marks.
Furthermore, understand the warranty offered by the manufacturer. A robust warranty signifies the company’s confidence in their product’s durability and can offer valuable recourse should any defects arise, protecting your investment and ensuring the long-term safety of your installation.
Quick Best Wire To Use For 220V For Air Conditioner Buying Checklist
- Verify AC Unit’s Power Requirements Check your air conditioner’s nameplate for its exact voltage and amperage draw.
- Determine the Correct Wire Gauge (AWG) Select a wire gauge that can safely handle the amperage without overheating.
- Choose High-Quality Conductor Material Opt for copper conductors for their superior conductivity and durability.
- Ensure Appropriate Insulation Rating Select wire with insulation rated for 220V and suitable for your installation environment.
- Consider Wire Length and Voltage Drop Account for longer runs which may require a thicker gauge to prevent voltage drop.
- Look for Safety Certifications Ensure the wire is certified by reputable organizations like UL or CSA for safety compliance.
Frequently Asked Questions (FAQ)
What Is The Most Important Factor When Choosing Wire For A 220V Air Conditioner?
The most crucial factor is selecting the correct wire gauge (AWG) to safely handle the amperage your air conditioner draws, preventing overheating and potential fire hazards.
Can I Use Aluminum Wire For My 220V Air Conditioner Installation?
While aluminum wire can be used, copper is generally preferred for its better conductivity, lower resistance, and greater durability, especially for higher amperage applications like AC units.
How Does The Length Of The Wire Run Affect My Choice?
Longer wire runs can lead to voltage drop. You may need to use a thicker gauge wire than recommended for shorter runs to compensate and ensure adequate power delivery.
What Does The Insulation Rating On A Wire Mean For My Ac Unit?
The insulation rating indicates the maximum voltage and temperature the wire can safely withstand. Ensure it’s rated for 220V and appropriate for the environmental conditions where it will be installed.
Are There Specific Types Of Wire I Should Avoid For 220V Ac Installations?
Avoid using wires not specifically rated for 220V or those with insufficient amperage capacity. Always consult electrical codes and professional advice to ensure safety and compliance.
Final Verdict
Selecting the right wire for your 220V air conditioner is vital for safety and optimal performance. Ensuring proper gauge, material, and insulation protects your investment and prevents electrical issues.
